ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD. sales@gcfertilizergranulator.com 86--15286833220
製品詳細
起源の場所: チェン州,中国河南州
ブランド名: Shenghong
証明: CE, ISO
モデル番号: SHシリーズ
支払及び船積みの言葉
最小注文数量: 1
価格: can be negotiated
パッケージの詳細: コンテナまたは合板ボックス
受渡し時間: 10～15営業日
支払条件: L/C,T/T,D/P,D/A,ウェスタン・ユニオン
供給の能力: 月あたり200セット
特徴: |
高効率、低エネルギー消費、安定した性能 |
タイプ: |
肥料生産ライン |
カスタマイズ: |
利用可能 |
顆粒比: |
95％以上 |
肥料の微粒の形: |
ラウンド |
重さ: |
カスタマイズされた |
定式化: |
NPK肥料 |
材料: |
炭素鋼 |
顆粒サイズ: |
3-8mm |
ボラッジ: |
カスタマイズされた |
特徴: |
高効率、低エネルギー消費、安定した性能 |
タイプ: |
肥料生産ライン |
カスタマイズ: |
利用可能 |
顆粒比: |
95％以上 |
肥料の微粒の形: |
ラウンド |
重さ: |
カスタマイズされた |
定式化: |
NPK肥料 |
材料: |
炭素鋼 |
顆粒サイズ: |
3-8mm |
ボラッジ: |
カスタマイズされた |

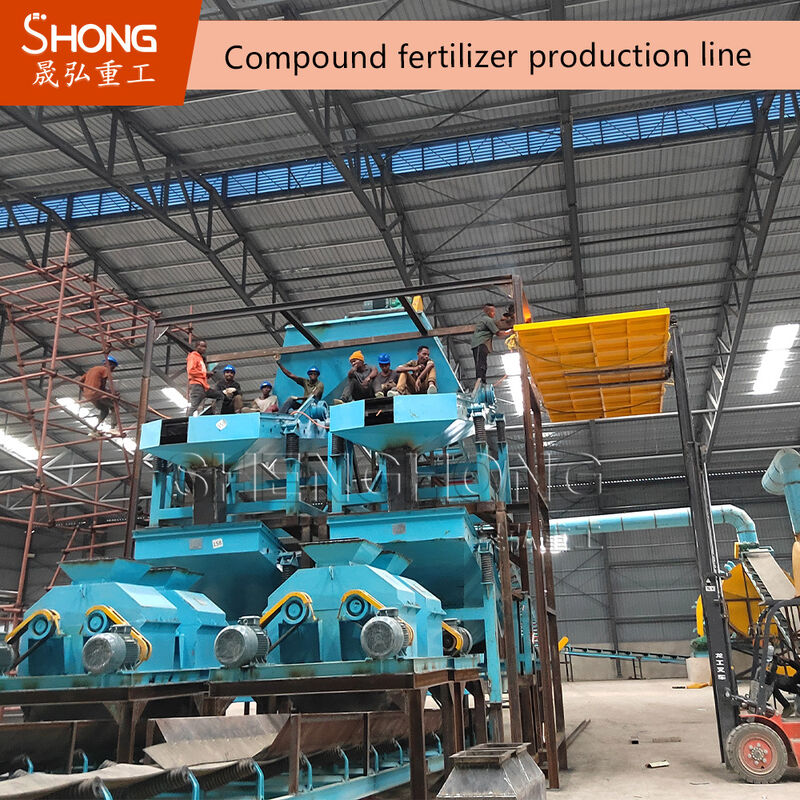

Aiming for an annual production of 100,000 tons of compound fertilizer, this line is built around a rotary drum granulator. This machine provides substantial granulation capacity and is effective for producing various grades of compound fertilizer, from high to low concentration.
Raw Materials
| No. |
Processes |
Machines | Function of machines |
|---|---|---|---|
| 1 | Batching process | Automatic batching machine | Ratio raw materials by formula |
| 2 | Grinding process | Grinder | Grind granules to powder |
| 3 | Mixing process | Mixer | Mix powder evenly, If necessary, add water, or other micro-elements |
| 4 | Granulating process | Feeding machine & Granulator | Feed mixed powder into granulator evenly and make mixed powder into fertilizer granules |
| 5 | Drying process | Dryer, Hot stove, Cyclone | Dry fertilizer granules to low moisture by hot air, generate hot air, and collect dust |
| 6 | Cooling process | Cooler, Cyclone | Cool fertilizer granules to normal temperature and collect dust |
| 7 | Screening process | Screener | Screen out required size from fertilizer granules |
| 8 | Coating process | Coating machine | Coat color, anti-blocking agent, microelements etc on fertilizer granules |
| 9 | Packaging process | Air compressor & Packaging machine | Generate power to packaging machine and package fertilizer granules into bags |
Key Features
Uniform Spherical Granules: Produces consistent 1-3mm spherical particles with excellent flowability.
Broad Raw Material Compatibility: Accommodates a wide range of materials for producing various fertilizer grades.
User-Friendly Control System: Features a simple and intuitive formulation control interface for easy operation.
Raw material selection is based on market demand and soil analysis results. The production line offers flexible manufacturing of compound, organic, and organic-compound fertilizers, with total nutrient content (N+P₂O₅+K₂O) adjustable between 20% and 48%.
