製品詳細
起源の場所: チェン州,中国河南州
ブランド名: Shenghong
証明: CE, ISO
モデル番号: SHシリーズ
支払及び船積みの言葉
最小注文数量: 1
価格: can be negotiated
パッケージの詳細: コンテナまたは合板ボックス
受渡し時間: 10〜15営業日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 月あたり200セット
顆粒強度: |
高い |
アプリケーション資料: |
粉 |
肥料効率: |
高い |
水分: |
20%-40% |
タイプ: |
有機無機複合肥料 |
完成品の粒子の大きさ: |
2-5mm |
状態: |
新しい |
消費電力: |
低い |
顆粒強度: |
高い |
アプリケーション資料: |
粉 |
肥料効率: |
高い |
水分: |
20%-40% |
タイプ: |
有機無機複合肥料 |
完成品の粒子の大きさ: |
2-5mm |
状態: |
新しい |
消費電力: |
低い |

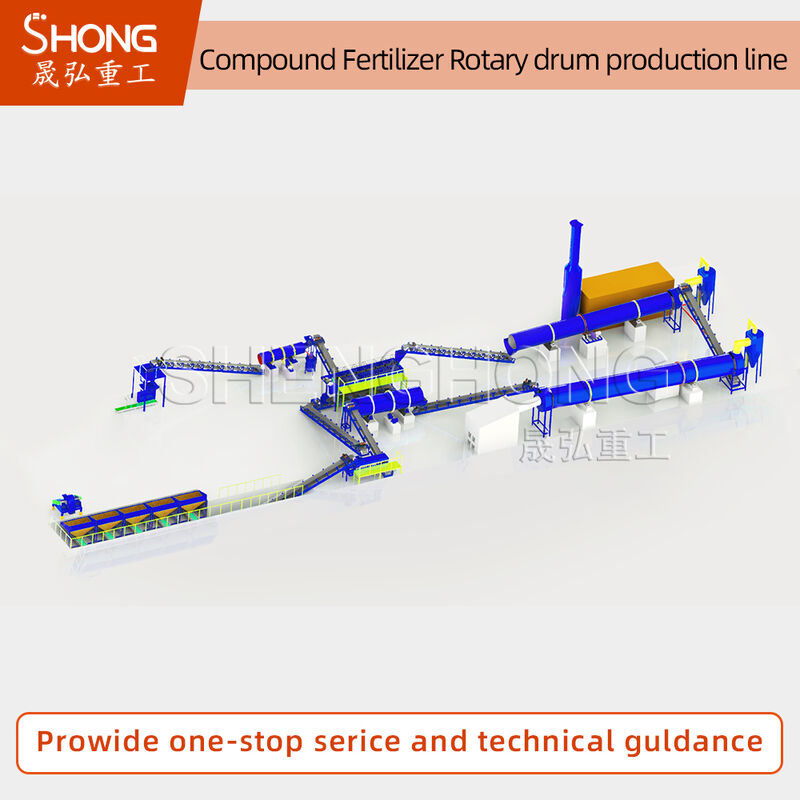

This fertilizer production line is capable of producing 100,000 tons of compound fertilizer annually. Its core component is a high-capacity rotary drum granulator, which is perfectly suited for the manufacturing of high, medium, and low concentration compound fertilizers.
Raw Materials
| No. |
Processes |
Machines | Function of machines |
|---|---|---|---|
| 1 | Batching process | Automatic batching machine | Ratio raw materials by formula |
| 2 | Grinding process | Grinder | Grind granules to powder |
| 3 | Mixing process | Mixer | Mix powder evenly, If necessary, add water, or other micro-elements |
| 4 | Granulating process | Feeding machine & Granulator | Feed mixed powder into granulator evenly and make mixed powder into fertilizer granules |
| 5 | Drying process | Dryer, Hot stove, Cyclone | Dry fertilizer granules to low moisture by hot air, generate hot air, and collect dust |
| 6 | Cooling process | Cooler, Cyclone | Cool fertilizer granules to normal temperature and collect dust |
| 7 | Screening process | Screener | Screen out required size from fertilizer granules |
| 8 | Coating process | Coating machine | Coat color, anti-blocking agent, microelements etc on fertilizer granules |
| 9 | Packaging process | Air compressor & Packaging machine | Generate power to packaging machine and package fertilizer granules into bags |
Key Features
Utilizes well-established production processes, guaranteeing stable and efficient operation.
Forms well-rounded, spherical particles measuring between 1mm and 3mm in diameter.
Exhibits excellent compatibility with a wide array of raw materials for flexible production.
Incorporates straightforward production formulas for ease of use and control.
Input materials can be tailored according to specific market needs and soil test outcomes. The production line is highly adaptable, producing not only compound fertilizer but also organic fertilizer and organic compound fertilizer with NPK content ranging from 20% to 48%.
