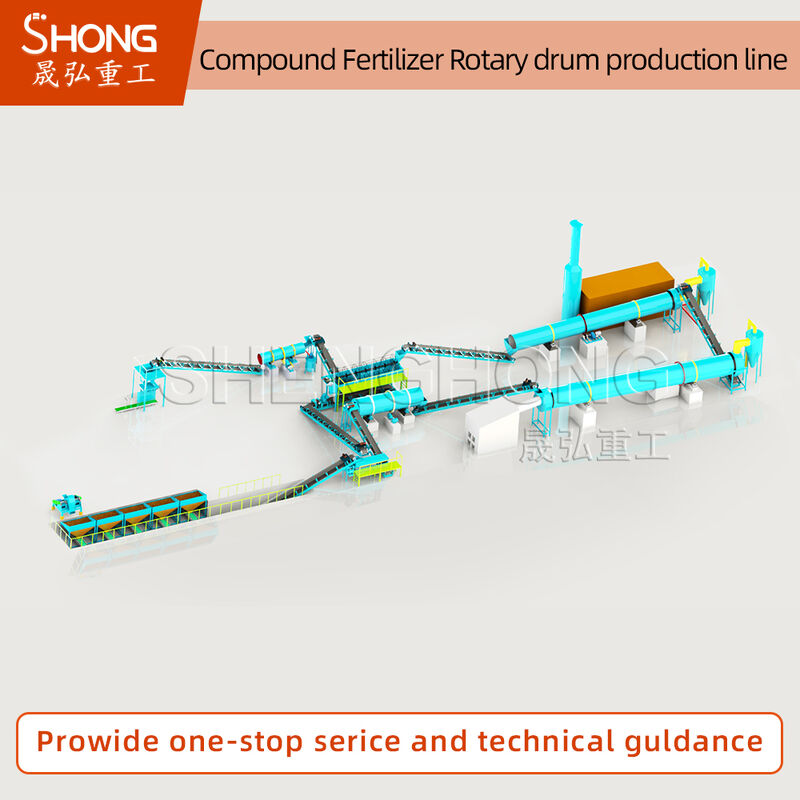

Designed for a substantial output of 100,000 tons of compound fertilizer per year, this production line centers on a robust rotary drum granulator. This key equipment ensures large-capacity granulation, effectively producing high, medium, and low-concentrate compound fertilizer products.
Raw Materials
| No. |
Processes |
Machines | Function of machines |
|---|---|---|---|
| 1 | Batching process | Automatic batching machine | Ratio raw materials by formula |
| 2 | Grinding process | Grinder | Grind granules to powder |
| 3 | Mixing process | Mixer | Mix powder evenly, If necessary, add water, or other micro-elements |
| 4 | Granulating process | Feeding machine & Granulator | Feed mixed powder into granulator evenly and make mixed powder into fertilizer granules |
| 5 | Drying process | Dryer, Hot stove, Cyclone | Dry fertilizer granules to low moisture by hot air, generate hot air, and collect dust |
| 6 | Cooling process | Cooler, Cyclone | Cool fertilizer granules to normal temperature and collect dust |
| 7 | Screening process | Screener | Screen out required size from fertilizer granules |
| 8 | Coating process | Coating machine | Coat color, anti-blocking agent, microelements etc on fertilizer granules |
| 9 | Packaging process | Air compressor & Packaging machine | Generate power to packaging machine and package fertilizer granules into bags |
Key Features
Relies on mature and reliable production technology for consistent, high-yield performance.
Produces spherical granules with a consistent size range of 1.0 to 3.0 mm.
Offers wide adaptability to various raw material inputs for diverse fertilizer formulations.
Features an easily manageable production formula system for operational simplicity.
Materials are chosen in response to market dynamics and soil testing data. This versatile line can manufacture standard compound fertilizer, organic fertilizer, and bio-organic compound fertilizer, with NPK ratios customizable between 20% and 48%.
