起源の場所: 河南省、中国
ブランド名: SHENGHONG
証明: ISO9001,CE
モデル番号: SH-
支払及び船積みの言葉
最小注文数量: 1
価格: 交渉可能
パッケージの詳細: 消費者の需要,通常コンテナ
受渡し時間: 15日
支払条件: L/C、T/T、
供給の能力: 月額80セット
状態: |
新しい |
提供されるアフターサービス: |
コミッショニングとトレーニング、ビデオテクニカルサポート、オンラインサポート |
製品名: |
回転式ふるい装置、振動ふるい濾過機 |
キーワード: |
振動ふるい、高効率振動ふるい器 |
関数: |
スクリーニング\分離 |
状態: |
新しい |
提供されるアフターサービス: |
コミッショニングとトレーニング、ビデオテクニカルサポート、オンラインサポート |
製品名: |
回転式ふるい装置、振動ふるい濾過機 |
キーワード: |
振動ふるい、高効率振動ふるい器 |
関数: |
スクリーニング\分離 |
Vibratory Screening Equipment for Organic Fertilizer

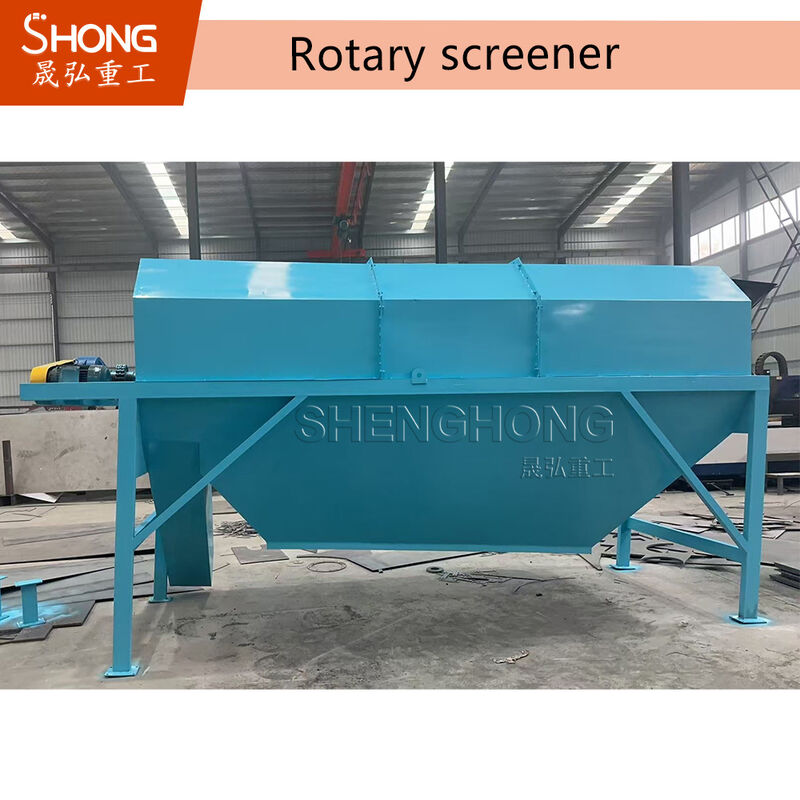

The rotary screening machine mainly consists of a motor, a reducer, a drum device, a frame, a sealing cover, as well as a feeding port and a discharging port. It is a commonly used equipment in the production of organic fertilizers and compound fertilizers.
It features high precision and efficiency in classification. Meanwhile, it has strong adaptability to materials, capable of screening materials with different properties such as stickiness, high humidity, impurities, and many others.
The feeding methods are diverse, including manual feeding and mechanical transmission, which can achieve large-scale production.|
Model |
Cylinder |
|
|
|
|
|
|
|
|
|||||
|
1.0X3.0 |
1000 |
3000 |
22 |
2-2.5 |
2.2 |
3.5X1.3X2.2 |
|
1.2X4.0 |
1200 |
4000 |
16 |
2-2.5 |
4 |
5.2X1.5X2.4 |
|
1.5X5.0 |
1500 |
5000 |
14 |
2-2.5 |
5.5 |
6.5X1.8X3.0 |
|
1.5X6.0 |
1600 |
6000 |
12 |
2-2.5 |
7.5 |
7.5X1.9X3.1 |
|
1.8X7.0 |
1800 |
7000 |
11.5 |
2-2.5 |
11 |
7.6X2.2X3.2 |
|
2.0X8.0 |
2000 |
8000 |
10 |
2-2.5 |
15 |
8.5X2.2X3.2 |
Its working principle is to divide the materials into 1 to 4 sections according to different classification requirements, and control the selection of finished products and return materials based on the particle size of the materials.
The central screen mesh is made of materials such as nylon, stainless steel, and manganese steel according to different materials, with the screen holes being less prone to clogging, high screening efficiency, and long service life.
Our Vibratory Screening Equipment is carefully packaged to ensure safe delivery to your doorstep. The packaging materials used are durable and designed to protect the equipment during transportation. The packaging process is also carried out with precision and attention to detail to avoid any damage to the equipment.
