High Capacity Low Maintenance Disc Granulator for Uniform Spherical Fertilizer Pellets

製品詳細

起源の場所: 河南省、中国

ブランド名: shenghong

証明: ISO9001

モデル番号: SHQ

支払及び船積みの言葉

最小注文数量: 1

価格: 交渉可能

パッケージの詳細: 消費者の需要,通常コンテナ

受渡し時間: 15営業日

支払条件: L/C、D/A、D/P

供給の能力: 月額80セット

最もよい価格を得なさい

製品詳細

製品の説明

製品詳細

ハイライト:
                                    High Capacity Disc Granulator, Low Maintenance Organic Fertilizer Granulator, Uniform Spherical Granules Fertilizer Pellet Machine


製品の説明

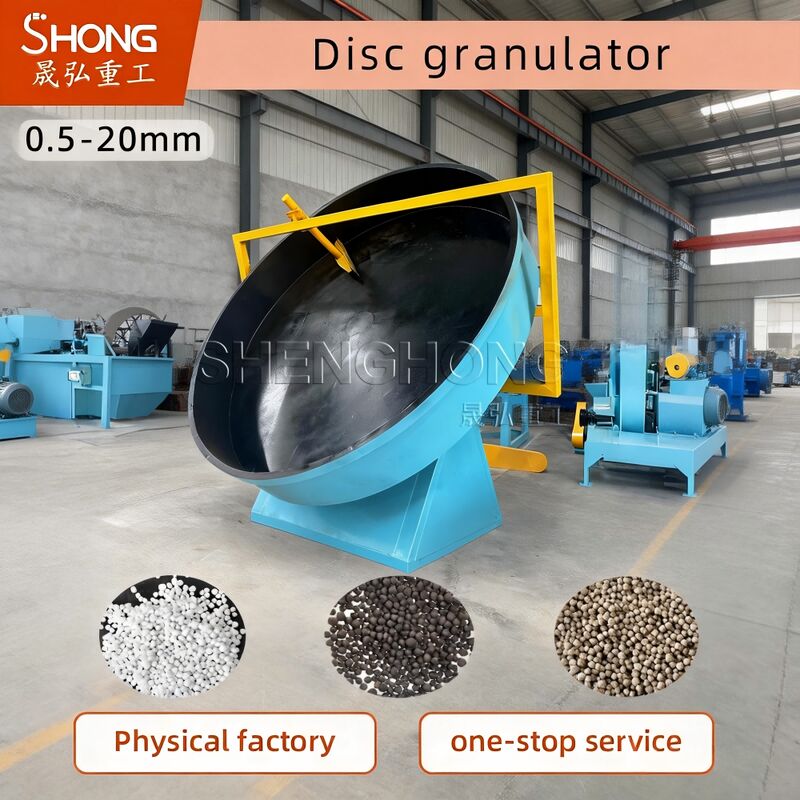

Disc Granulator – High Capacity, Low Maintenance for Fertilizer Production

Product Overview

A heavy-duty disc granulator designed to convert powdered materials (moisture content: 20-30%) into uniform spherical granules (2-10mm) for:

Organic/compound fertilizer manufacturing
Mining & chemical processing
Feed production

Technical Specifications

Model	Rotation speed (r/min)	Motor power (kw)	Capacity (t/h)	Length × width × height (mm)
SHQ-80	25	1.5	0.1-0.2	90011001000
SHQ-10	21	2.2	0.3-0.5	140012001400
SHQ-15	17	3	0.5-0.8	175016202000
SHQ-18	17	5.5	0.6-1	200019802100
SHQ-20	19	5.5	0.8-1.2	220023002200
SHQ-25	13.6	7.5	1-1.5	220028002700
SHQ-28	13.6	11	1.8-3	310023503060
SHQ-30	11	11	3-4.5	340025003165
SHQ-32	10	15	3.5-5	350026003350
SHQ-36	10	22	5-7	400029903460
SHQ-45	12	30	13-18	503037504300

Core Features

High-Efficiency Granulation
- ≥90% success rate
- Adjustable disc angle (35-55°)
- 6-12 rpm rotation speed
Durable Construction
- 10mm thick steel plate base
- Reinforced gearbox (5+ year lifespan)
- Auto-scraper system
Material Compatibility
- Animal manure (chicken/cow/sheep)
- Agricultural waste (straw, sludge)
- Industrial powders
